DEFP
Product Brief
Diaphragm Transfer pump designed for dispensing DEFLightweight non corroding Polypropylene Body, rain & weather proof
Self priming pump design
Duty Cycle: 30 mins On / 30 Mins Off
Built-In Thermal Overload Protection
Pump Inlet & Outlet fitted with ¾” (19 mm) Hose barbs
Available in a choice of
b. 220V AC
c. 12V DC
WETTED COMPONENTS
Polypropylene, EPDM, Viton
RECOMMENDED USE
DEF, Adblue, Urea, Water, Antifreeze, Detergents etc.
DO NOT USE
Diesel, Kerosene, Gasoline, Oils etc.
Complete Set Model Available :

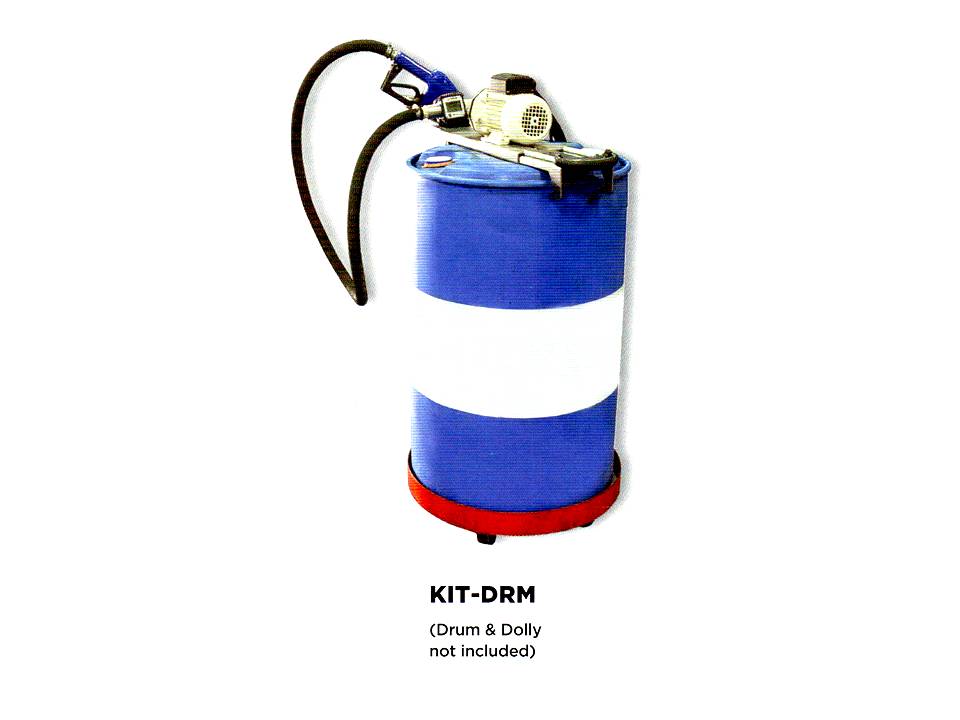

KIT/DRM/DEF/1/US : Drum Kit
KIT/IBC/DEF/1/US: IBC Tank Kit
WD-12

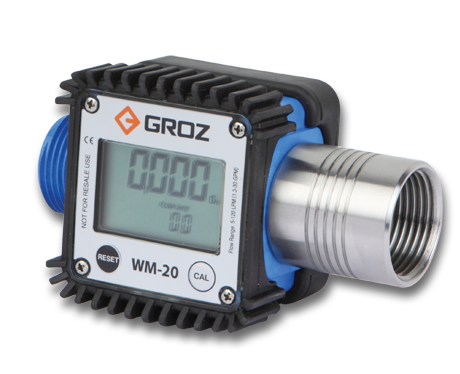

Digital Flow meter for Adblue/ DEF use
Digital Turbine Meter with Polyamide construction, designed especially for use with DEF, water etc.
Designed for in-line, end of the line application or use with a dispensing nozzle
Polyamide turbine measuring mechanism
Electronic display using two AAA 1.5V batteries
Polyamide body & sealed electronic card makes it suitable for use in severe weather conditions
Display can be rotated in 4 different positions
Measures in Litres, Quarts, Pints & Gallons
Easy user re calibration
includes one additional stainless steel adaptor to convert from 1” male to 1” female threads
RECOMMENDED USE
Urea, AdBlue, DEF, Windshield fluids, water & water based media
DO NOT USE WITH
Fuels and Oils
WETTED COMPONENTS
Polyamide, Viton, Stainless Steel

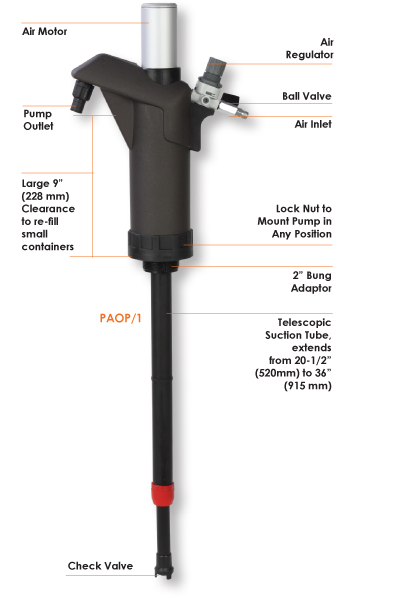

PAOP
Product BriefAir Operated Transfer Pump for dispensing DEF
Choice of materials makes it compatible with many more fluids, compared to other Air pumps which primarily pump Oil
Built-In 2” Bung Adaptor allows the pump to be fixed on Drums with 2” opening. Pump position can be adjusted using the Lock Nut incorporated in the pump body
Air Supply is provided via a Ball Valve connected to an Air Regulator which limits max. air pressure to 100 PSI (7 BAR)
Supplied complete with Suction Tube with check valve for use with 15 - 55 gl (50 – 205 litre) drums
Available as pump only or pump complete with 2m hose and manual dispensing nozzle.
WETTED COMPONENTS
Polypropylene, Viton, Stainless Steel, Nylon*, PVC*
*only pump with hose & nozzle
FOR USE WITH
Water-based media, Detergents, Soaps, Antifreeze, Windshield Washer, Hydraulic Oils, Lubricants, Herbicides & Pesticides, Adblue, Urea, DEF etc. Pump should only be used with Nonflammable liquids
DO NOT USE WITH
Any media not compatible with materials used in the pump construction. Pump must never be used for Fuel Transfer or with Thinners, Solvents etc.
