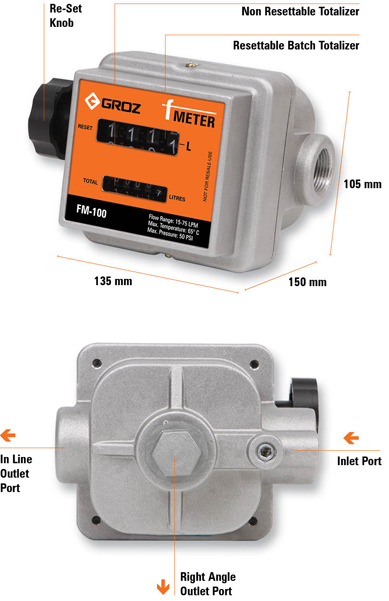

GROZ FM-100
Product Brief
Worlclass Mechanical Fuel Meter, extremely compact, yet easy to read
Robust Aluminum Die Construction
3 Port Design which allow the meter to be fitted In –Line or with the Inlet & outlet ports at Right Angle
Nutating Disc Mechanism offers high tolerance to fuel contamination
For use with Electric Fuel Pumps or gravity flow (with a minimum gravity head of 4’)
Register cap can be easily removed & rotated to every 90° orientation for display reading
Easy user re calibration
Works with both Fuels & Oils
Available in Litre/Gallon version in a choice of ¾” or 1” threads
RECOMMENDED USE
Diesel, Gasoline, Biodiesel, Low to Medium Viscosity Oils
DO NOT USE WITH
Water based media
WETTED COMPONENTS
Aluminum, Poly Butylene Terephthalate (PBT), Viton, Stainless Stee.
GROZ FM-10
Product Brief
High Accuracy Diesel Meter with mechanical register
Nutating Disc mechanism offers high tolerance to fuel contamination
Meter is designed for both In-Line applications & gravity flow (with a minimum gravity head of 4’)
Ideal for use with Electric Fuel pumps
Register cap can be easily removed & rotated to every 90° orientation for display reading
Robust Aluminum Die Cast construction 'Easy user re calibration
Works with both Fuels & Oils
Available in Litre / Gallon version
RECOMMENDED USE
Diesel, Biodiesel, Low to Medium Viscosity Oils
DO NOT USE WITH
Gasoline, Water based media
WETTED COMPONENTS
Aluminum, Buthil Tereftalat, Nitrile Rubber
Works with both Fuels & Oils
Available in Litre / Gallon version
RECOMMENDED USE
Diesel, Biodiesel, Low to Medium Viscosity Oils
DO NOT USE WITH
Gasoline, Water based media
WETTED COMPONENTS
Aluminum, Buthil Tereftalat, Nitrile Rubber

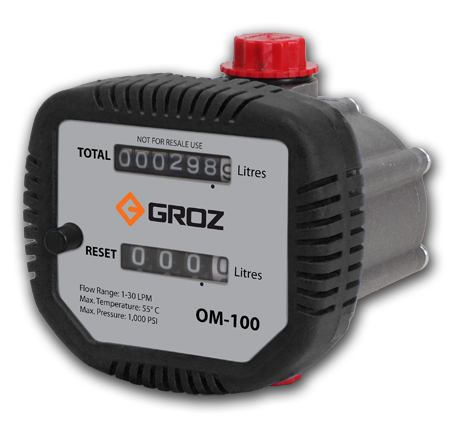

GROZ OM-100
Product Brief
High pressure positive displacement meter suitable for in-line and end of line applications
Oval gear mechanism for optimum accuracy
7 Digit Non-Resettable Totaliser
Meter Inlet / Outlet threaded ½” for use with Air / Electric / Manual pumps
High reliability Mechanical Display
Robust Aluminum Die Cast construction with protective shroud on meter
Protective shrouds available in a choice of colours – Black (Standard), Blue, Red, Green & Yellow for fluid identification
Available in Litres / Quarts version
RECOMMENDED USE
Oils upto SAE 140, Diesel, Kerosene & Engine Coolants (RTU)
DO NOT USE WITH
Water based media, Gasoline etc.
WETTED COMPONENTS
Aluminum, Acetal, Nitrile Rubber & Steel

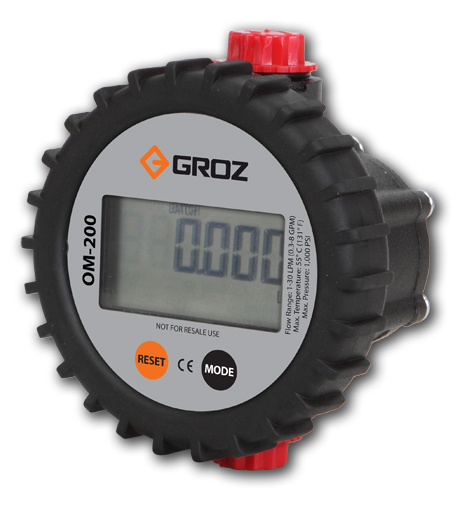

GROZ OM-200
Product BriefHigh pressure positive displacement meter suitable for in-line and end of line applications
Oval gear mechanism for optimum accuracy
6 Digit Non-Resettable Totalizer
Meter Inlet / Outlet threaded ½”
Electronic Display using One 3V lithium Ion battery with life up to 5 years
Robust Aluminium Die Cast construction with protective shroud on meter
Protective shrouds available in a choice of colours – Black (Standard), Blue, Red, Green & Yellow for fluid identification
Display can be rotated in every 90° orientation for ease of installation
Measures in Litres; US Gallons; Quarts; Pints; Ounces & Decilitres
Easy user re-calibration
RECOMMENDED USE
Oils upto SAE 140, Diesel, Kerosene & Engine Coolants (RTU)
DO NOT USE WITH
Water based media, Gasoline etc..
WETTED COMPONENTSAluminum, Acetal, Nitrile Rubber & Steel
Protective shrouds available in a choice of colours – Black (Standard), Blue, Red, Green & Yellow for fluid identification
Display can be rotated in every 90° orientation for ease of installation
Measures in Litres; US Gallons; Quarts; Pints; Ounces & Decilitres
Easy user re-calibration
RECOMMENDED USE
Display can be rotated in every 90° orientation for ease of installation
Measures in Litres; US Gallons; Quarts; Pints; Ounces & Decilitres
Easy user re-calibration
RECOMMENDED USE
Oils upto SAE 140, Diesel, Kerosene & Engine Coolants (RTU)
DO NOT USE WITH
Water based media, Gasoline etc..
WETTED COMPONENTS
DO NOT USE WITH
Water based media, Gasoline etc..
WETTED COMPONENTS
Aluminum, Acetal, Nitrile Rubber & Steel

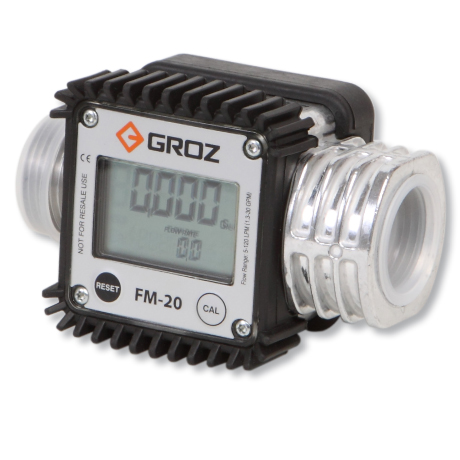

GROZ FM-20
|
Product Brief Digital Turbine meter for low viscosity fluids, easy to install in line or for end of the line applications Polypropylene Turbine measuring mechanism Electronic Display using two AAA 1.5V batteries Polyamide body and sealed electronic card make it suitable for use in severe weather conditions Display can be rotated in 4 different positions Measures in Litres, Quarts, Pints & Gallons Easy user re calibration Includes one additional stainless steel adaptor to convert from 1” male to 1” female threads RECOMMENDED USE Diesel, Gasoline, Bio Diesel, Windshield Fluid, Water DO NOT USE WITH Oils WETTED COMPONENTS Polyamide, Polypropylene, Viton |
